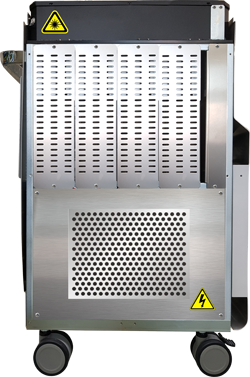

Built-in type OEM Laser
▲ Built-in type OEM Laser
Potential applications
Dental/Medical Lasers
Specifications
▶ Laser
▼ Specifications |
Er:YAG |
Nd:YAG |
| 2940nm |
1064nm |
1320nm |
1440nm |
| Wavelength |
 |
|
|
|
| ● Max. Avg. Power(W) |
15 |
30 |
10 |
5 |
| ● Max. Pulse Energy(mJ/pulse)(<1msec) |
2.0 |
3.0 |
1.5 |
1.0 |
| ● Resonator |
Integrated in the main body(400 x 70 x 70 WHD mm),
Fiber focusing unit mountable |
| ● Beam Delivery |
Laser resonator in the main body→Optiv fiber
or Articulated Arm→Handpiece |
| ● Required Cooling Capacity |
>6L/min |
| ● Aiming Beam |
Optional |
※ The external view and/or specifications of the above products are subject to change without prior notice to improve quality.
