Optic Fibers

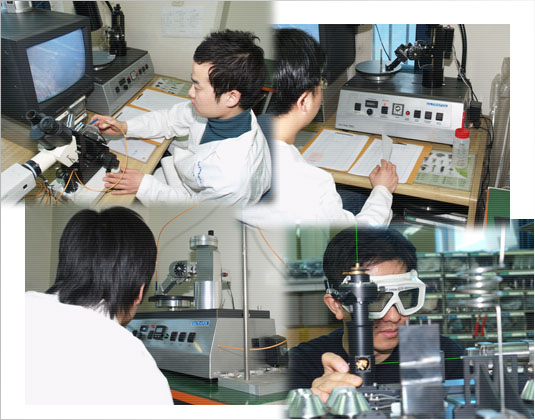

▲ Optic fibers & laser tips manufacturing process

Specifications

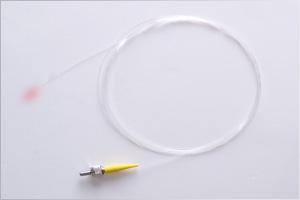

BSB Series(with/without SMA-905)

Items Specifications
Core Material Silica(Transparent)
Core Diameter(um) 200, 300, 400 ± 2%
-Cores with various diameter available upon request
Sheath(Tubing)
(in case of 300um diameter core)		 Core: Silica 300um±6um
1st. appication: 325um±10um
2nd Coating: 650um±30um
Connector SMA-905 connector and/or othersbr>-Custom specifications available
Usage Diode & Nd:YAG Lasers
Length -Custom specifications available
Option Single/Both side termination(with connector(s)) available

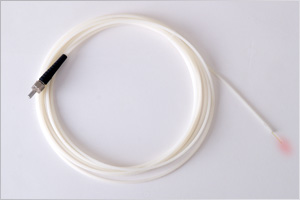

BSC Series(with/without SMA-905)

Items Specifications
Core Material Silica(Ivory)
Core Diameter(um) 200, 300, 400 ± 2%
-Cores with various diameter available upon request
Sheath(Tubing)
(in case of 300um core)		 Core: Silica 300um±2%
1st. appication: Silica 330um±2%
2nd Coating: Polyimide 350um±3%
Sheath(Tubing)
(in case of 300um diameter core)		 High Quality C-Flex
-inner diameter: 0.5mm, outer diameter: 2.0mm
Connector SMA-905 connector and/or others
-Custom specifications available
Usage Diode & Nd:YAG Lasers
Length -Custom specifications available
Option Single/Both side termination(with connector(s)) available

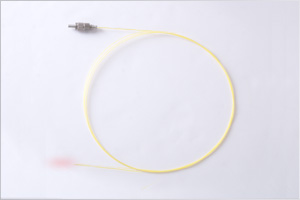

BSE Series(with/without SMA-905)

Items Specifications
Core Material Quartz(Ivory)
Core Diameter(um 450 ± 5%
-Cores with various diameter available upon request
Sheath(Tubing)
(in case of 450um diameter core)		 Core: Quartz 450um±5%
Sheath(Clad): 500um±5%/td>
Connector SMA-905 connector and/or others
-Custom specifications available
Usage Er:YAG & Ho:YAG Lasers
Length -Custom specifications available
Option Single/Both side termination(with connector(s)) available

※ The external view and/or specifications of the above products are subject to change without prior notice to improve quality.
